COMPACT EXCAVATORS

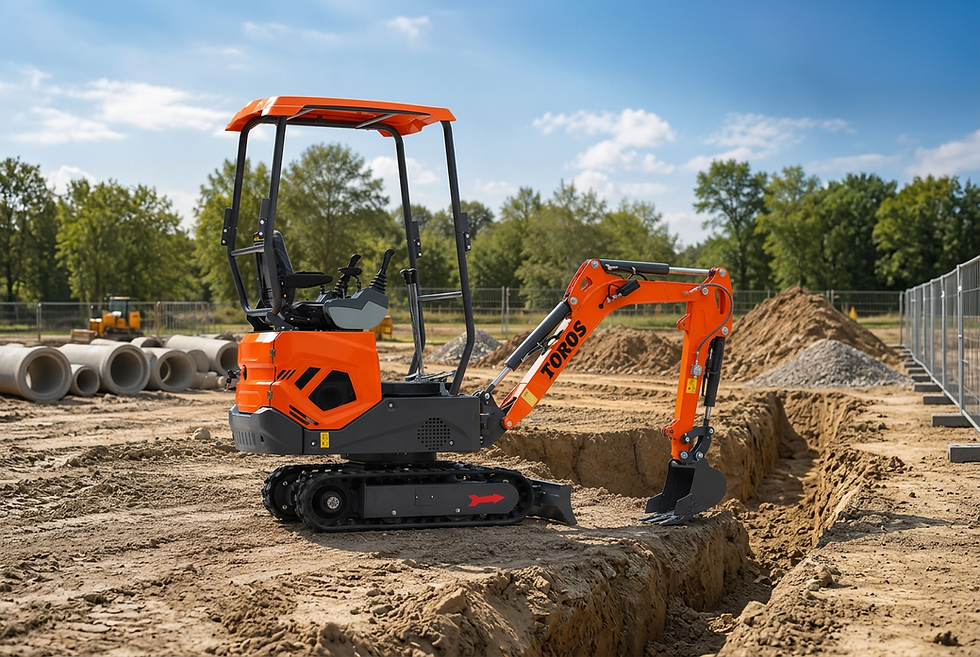

TOROS TE 12
The TE12 is designed to improve both operator comfort and job site safety without compromising compact performance. Its ergonomic pilot controls reduce unnecessary bending during operation, while the reinforced four-post canopy offers dependable protection and excellent visibility. For year-round productivity, an optional enclosed cab provides additional comfort in changing weather conditions, making the TE12 suitable for a wide range of professional applications.
Engine
Engine Rated Power
Operating Weight
Machine Control
Bucket Hitch
Pump Type
Oil Flow
Hydraulic Oil Tank Capacity
Fuel Tank Capacity
Track Type
Kubota D722
10.2 kW
1200 KG
Pilot Joysticks
Quick Hitch
Gear
18 L / min
13 L
10 L
Rubber
Technical Parameters
Maximum Digging Radius
Maximum Digging Depth
Max. Vertical Digging Depth
Maximum Dumping Height
Minimum Swing Radius
Blade Lifting Height
Blade Digging Depth
Maximum Digging Force
Travelling Speed
Bucket Capacity
1220 mm
3080 mm
1670 mm
1605 mm
1745 mm
150 mm
220 mm
6.5 kn
1.2 km / h
0.022m3
Operating Parameters
Machine Height
Max Machine Length
Chassis Width
Ground Clearance
Track Length
Track Width
Width - Track Retracted
Width - Track Extended
Boom Slew - Right
Boom Slew - Left
2250 mm
2870 mm
940 mm
400 mm
1235 mm
180 mm
940 mm
1100 mm
45 degrees
53 degrees
