COMPACT EXCAVATORS

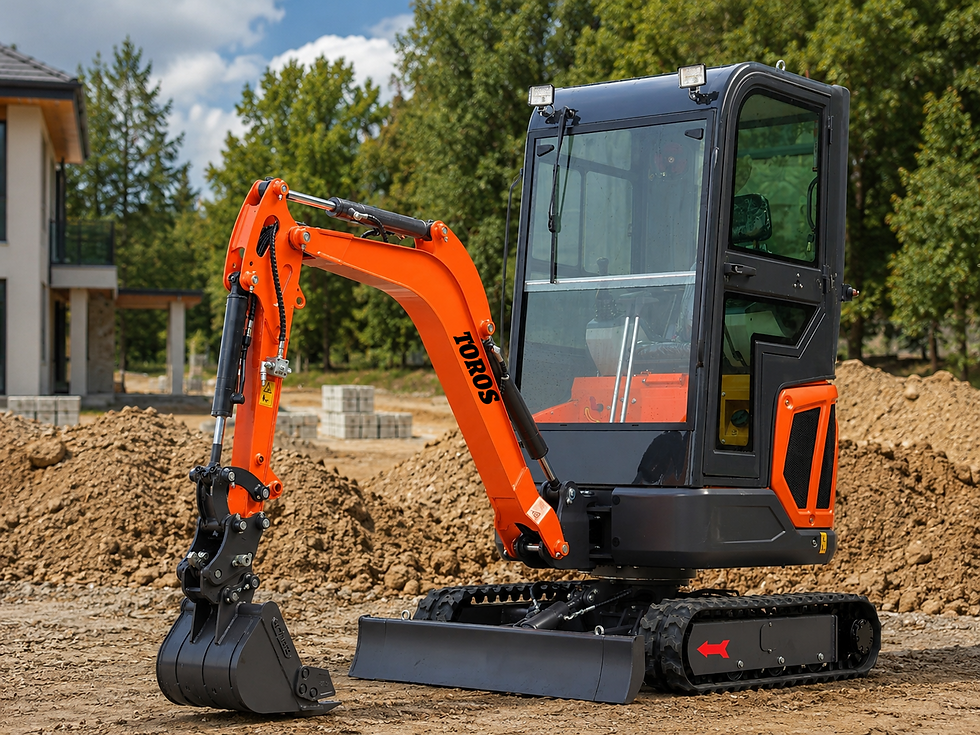

TOROS TE 16
Built for efficient performance in confined working environments, the TE16 combines a short-tail design with practical features that simplify everyday operation. The compact rear structure allows greater maneuverability around buildings and obstacles, while the larger fuel tank supports longer working hours. An easy-access engine compartment also makes routine inspections and maintenance faster and more convenient.
Technical Parameters
Engine
Engine Rated Power
Operating Weight
Machine Control
Bucket Hitch
Pump Type
Oil Flow
Hydraulic Oil Tank Capacity
Fuel Tank Capacity
Track Type
Kubota D722
10.2 kW
1600 KG
Pilot Joysticks
Hydraulic Hitch
Gear
18 L / min
19 L
18 L
Rubber
Operating Parameters
Maximum Digging Radius
Maximum Digging Depth
Max. Vertical Digging Depth
Maximum Dumping Height
Minimum Swing Radius
Blade Lifting Height
Blade Digging Depth
Maximum Digging Force
Travelling Speed
Bucket Capacity
3420 mm
1780 mm
1550 mm
2030 mm
1350 mm
150 mm
220 mm
10.8 kn
1.7 km / h
0.03 m3
Machine Height
Max Machine Length
Chassis Width
Ground Clearance
Track Length
Track Width
Width - Track Retracted
Width - Track Extended
Boom Slew - Right
Boom Slew - Left
2220 mm
3060 mm
1100 mm
400 mm
1392 mm
180 mm
1100 mm
1200 mm
46 degrees
44 degrees
Key Dimensions
All data supplied by the manufacturer
